Reducer Tube To Stub

Hydraulic Fittings

Stainless Steel Hydraulic Reducer Tube To Stub Fittings Exporter


PN

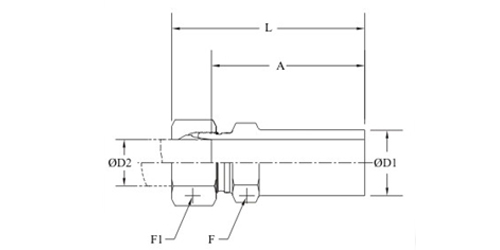

 Part No. Tube
OD1    OD2		 F1 F L A
S HSHF/R-TS/08S-06 8 6 17 14 43 28
Series HSHF/R-TS/10S-06 10 6 17 14 45 30.5
PN 630 HSHF/R-TS/10S-08   8 19 17 45 30.5
  HSHF/R-TS/12S-06 12 6 17 14 47 32.5
  HSHF/R-TS/12S-08   8 19 17 47 32.5
  HSHF/R-TS/12S-10   10 22 19 48 32
  HSHF/R-TS/14S-06 14 6 17 17 51 36.5
  HSHF/R-TS/14S-08   8 19 17 51 36.5
  HSHF/R-TS/14S-10   10 22 19 52 36
  HSHF/R-TS/14S-12   12 24 22 52 36
  HSHF/R-TS/16S-06 16 6 17 17 53 38.5
  HSHF/R-TS/16S-08   8 19 17 53 38.5
  HSHF/R-TS/16S-10   10 22 19 54 38
  HSHF/R-TS/16S-12   12 24 22 55 38.5
  HSHF/R-TS/16S-14   14 27 22 57 39.5
PN 400 HSHF/R-TS/20S-06 20 6 17 22 58 43
  HSHF/R-TS/20S-08   8 19 22 58 43
  HSHF/R-TS/20S-10   10 22 22 59 42.5
  HSHF/R-TS/20S-12   12 24 22 59 42.5
  HSHF/R-TS/20S-14   14 27 22 62 44
  HSHF/R-TS/20S-16   16 30 24 62 43.5
  HSHF/R-TS/25S-06 25 6 17 27 62 47.5
  HSHF/R-TS/25S-08   8 19 27 62 47.5
  HSHF/R-TS/25S-10   10 22 27 63 47
  HSHF/R-TS/25S-12   12 24 27 63 47
  HSHF/R-TS/25S-14   14 27 27 66 48.5
  HSHF/R-TS/25S-16   16 30 27 66 48
  HSHF/R-TS/25S-20   20 36 30 70 48
  HSHF/R-TS/30S-06 30 6 17 32 67 52
  HSHF/R-TS/30S-06   8 19 32 67 52
  HSHF/R-TS/30S-06   10 22 32 68 51.5
  HSHF/R-TS/30S-06   12 24 32 68 51.5
  HSHF/R-TS/30S-06   14 27 32 71 53
  HSHF/R-TS/30S-06   16 30 32 71 52.5
  HSHF/R-TS/30S-06   20 36 32 74 52.5
  HSHF/R-TS/30S-06   25 46 36 77 53
PN 315 HSHF/R-TS/38S-06 38 6 17 41 72 57
  HSHF/R-TS/38S-06   8 19 41 72 57
  HSHF/R-TS/38S-06   10 22 41 73 56.5
  HSHF/R-TS/38S-06   12 24 41 73 56.5
  HSHF/R-TS/38S-06   14 27 41 76 58
  HSHF/R-TS/38S-06   16 30 41 76 57.5
  HSHF/R-TS/38S-06   20 36 41 79 57.5
  HSHF/R-TS/38S-06   25 46 41 82 58
  HSHF/R-TS/38S-06   30 50 46 89 58.5
