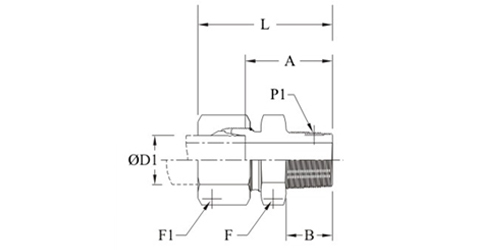

Male Connector BSP Tapered-BSP Parallel
Hydraulic Fittings
| Series | Part No | Tube OD1 |
F1 | F | K | L | A | B | P1 R/ G |
| LL | HSHF/MC/04LL-2R | 4 | 10 | 11 | - | 26 | 16 | 8 | R 1/8 |
| very | HSHF/MC/06LL-2R | 6 | 12 | 71 | - | 26 | 14.5 | 8 | R 1/8 |
| light | HSHF/MC/08LL-2R | 8 | 14 | 12 | - | 28 | 16.5 | 8 | R 1/8 |
| IN 100 | HSHF/MC/08LL-4R | 8 | 14 | 14 | - | 32 | 20.5 | 12 | R 1/4 |
| HSHF/MC/10LL-4R | 10 | 17 | 14 | - | 32 | 20.5 | 12 | R 1/4 | |
| HSHF/MC/12LL-4R | 12 | 19 | 17 | - | 32 | 20 | 12 | R 1/4 | |
| HSHF/MC/12LL-6R | 12 | 19 | 17 | - | 32 | 20 | 12 | R 3/8 | |
| L | HSHF/MC/06L-2G | 6 | 14 | 14 | 14 | 23 | 8.5 | 8 | G 1/8 |
| light | HSHF/MC/06L-2R | 6 | 14 | 12 | - | 30 | 15 | 8 | R 1/8 |
| PN 315 | HSHF/MC/06L-4G | 6 | 14 | 19 | 18 | 25 | 10 | 12 | G 1/4 |
| HSHF/MC/06L-6G | 6 | 14 | 22 | 22 | 26 | 11.5 | 12 | G 3/8 | |
| HSHF/MC/06L-8G | 6 | 14 | 27 | 26 | 27 | 12 | 14 | G 1/2 | |
| HSHF/MC/08L-4G | 8 | 17 | 19 | 18 | 25 | 10 | 12 | G 1/4 | |
| HSHF/MC/08L-2G | 8 | 17 | 14 | 14 | 23 | 8.5 | 8 | G 1/8 | |
| HSHF/MC/08L-4R | 8 | 17 | 17 | - | 35 | 20 | 12 | R 1/4 | |
| HSHF/MC/08L-6G | 8 | 17 | 22 | 22 | 26 | 11.5 | 12 | G 3/8 | |
| HSHF/MC/08L-8G | 8 | 17 | 27 | 26 | 27 | 12 | 14 | G 1/2 | |
| HSHF/MC/10L-4G | 10 | 19 | 19 | 18 | 26 | 11 | 12 | G 1/4 | |
| HSHF/MC/10L-4R | 10 | 19 | 17 | - | 36 | 21 | 12 | R 1/4 | |
| HSHF/MC/10L-6G | 10 | 19 | 22 | 22 | 27 | 12.5 | 12 | G 3/8 | |
| HSHF/MC/10L-8G | 10 | 19 | 27 | 26 | 28 | 13 | 14 | G 1/2 | |
| HSHF/MC/12L-6G | 12 | 19 | 22 | 22 | 27 | 12.5 | 12 | G 3/8 | |
| HSHF/MC/12L-4G | 12 | 22 | 19 | 18 | 27 | 12 | 12 | G 1/4 | |
| HSHF/MC/12L-4R | 12 | 22 | 19 | - | 37 | 22 | 12 | R 1/4 | |
| HSHF/MC/12L-6R | 12 | 22 | 19 | - | 37 | 22 | 12 | R 3/8 | |
| HSHF/MC/12L-8G | 12 | 22 | 27 | 26 | 28 | 13 | 14 | G 1/2 | |
| HSHF/MC/12L-8R | 12 | 22 | 24 | - | 39 | 24 | 14 | R 1/2 | |
| HSHF/MC/12L-12G | 12 | 22 | 32 | 32 | 29 | 14 | 16 | G 3/4 | |
| HSHF/MC/15L-8G | 15 | 27 | 27 | 26 | 29 | 14 | 14 | G 1/2 | |
| HSHF/MC/15L-6G | 15 | 27 | 24 | 22 | 29 | 13.5 | 12 | G 3/8 | |
| HSHF/MC/15L-6R | 15 | 27 | 24 | - | 38 | 23 | 12 | G 3/8 | |
| HSHF/MC/15L-8R | 15 | 27 | 24 | - | 40 | 25 | 14 | R 1/2 | |
| HSHF/MC/15L-12G | 15 | 27 | 32 | 32 | 30 | 15 | 16 | G 3/4 | |
| HSHF/MC/18L-8R | 18 | 32 | 27 | 26 | 31 | 14.5 | 14 | R 1/2 | |
| HSHF/MC/18L-6G | 18 | 32 | 27 | 22 | 29.5 | 14 | 12 | G 3/8 | |
| HSHF/MC/18L-8G | 18 | 32 | 27 | - | 41 | 25.5 | 14 | G 1/2 | |
| HSHF/MC/18L-12G | 18 | 32 | 32 | 32 | 30 | 14.5 | 6 | G 3/4 | |
| HSHF/MC/22L-12G | 22 | 36 | 32 | 32 | 33 | 16.5 | 16 | G 3/4 | |
| HSHF/MC/22L-8G | 22 | 36 | 32 | 32 | 33 | 16.5 | 14 | G 1/2 | |
| HSHF/MC/22LL-12R | 22 | 36 | 32 | 32 | 46 | 29.5 | 16 | R 3/4 | |
| HSHF/MC/28L-16G | 28 | 41 | 41 | 41 | 34 | 17.5 | 18 | G 1 | |
| HSHF/MC/28L-12G | 28 | 41 | 41 | 41 | 34 | 17.5 | 16 | G 3/4 | |
| HSHF/MC/35L-20G | 35 | 50 | 50 | 50 | 39 | 17.5 | 20 | G 1 1/4 | |
| HSHF/MC/35L-16G | 35 | 50 | 46 | 46 | 39 | 17.5 | 18 | G 1 | |
| HSHF/MC/42L-24G | 42 | 60 | 55 | 55 | 42 | 19 | 22 | G 1 1/2 |
