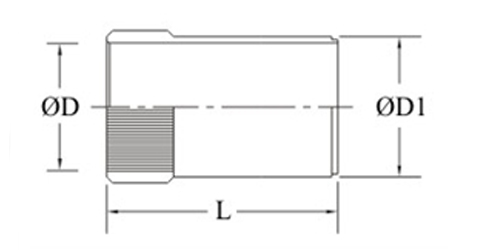

TUBE INSERT
|
|
Part No. |
Tube
OD
|
Tube
ID |
OD |
OD1 |
L |
|
HSTI/6-1 |
6 |
4 |
2.6 |
3.8 |
15.5 |
| HSTI/6-0.75 |
6 |
4.5 |
3.1 |
4.3 |
12.5 |
| HSTI/6-0.5 |
6 |
5 |
3.6 |
4.8 |
15.5 |
| HSTI/8-1 |
8 |
6 |
4.6 |
5.8 |
15.5 |
| HSTI/10-1.5 |
10 |
7 |
5.6 |
6.8 |
17 |
| HSTI/10-1 |
10 |
8 |
6.6 |
7.8 |
16.5 |
| HSTI/12-1.5 |
12 |
9 |
7.6 |
8.8 |
16.5 |
| HSTI/12-1 |
12 |
10 |
8.6 |
9.8 |
16.5 |
| HSTI/15-1.5 |
15 |
12 |
10.2 |
11.8 |
17 |
| HSTI/15-1 |
15 |
13 |
11.2 |
12.8 |
17 |
| HSTI/16-1 |
16 |
14 |
12.2 |
13.8 |
17 |
| HSTI/18-1.5 |
18 |
15 |
13.2 |
14.8 |
17.5 |
| HSTI/18-1 |
18 |
16 |
14.2 |
15.8 |
17.5 |
| HSTI/20-1.5 |
20 |
17 |
15.2 |
16.8 |
20 |
| HSTI/20-1 |
20 |
18 |
16.2 |
17.8 |
22 |
| HSTI/22-1.5 |
22 |
19 |
17.2 |
18.8 |
18 |
| HSTI/22-1 |
22 |
20 |
18.2 |
19.8 |
18 |
| HSTI/25-2 |
25 |
21 |
19.2 |
20.8 |
21.5 |
| HSTI/25-1.5 |
25 |
22 |
20.2 |
21.8 |
23.5 |
| HSTI/28-2 |
28 |
24 |
22.2 |
23.8 |
18 |
| HSTI/28-1.5 |
28 |
25 |
23.2 |
24.8 |
18 |
| HSTI/30-2 |
30 |
26 |
24.2 |
25.8 |
23.5 |
| HSTI/35-2 |
35 |
31 |
28.8 |
30.8 |
22.5 |
| HSTI/38-3 |
38 |
32 |
29.8 |
31.8 |
26.5 |
| HSTI/38-2.5 |
38 |
33 |
30.8 |
32.8 |
26.5 |
| HSTI/42-2 |
42 |
38 |
35.8 |
37.8 |
23.5 |
