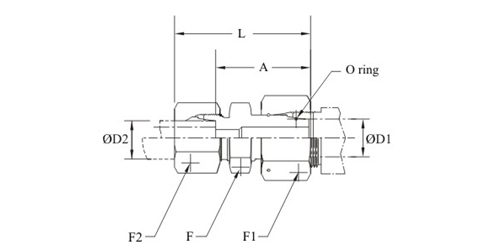

Swivel Reducing Adapter
Hydraulic Fittings
PN |
Part No. | Tube OD1 OD2 |
F1 | F2 | F | L | A | |
| PN 630 | HSHF/SSRA/08S-06 | 8 | 6 | 19 | 17 | 17 | 44 | 28 |
| PN 630 | HSHF/SSRA/10S-06 | 10 | 6 | 22 | 17 | 17 | 44 | 29.5 |
| HSHF/SSRA/10S-08 | 8 | 19 | 44 | 29.5 | ||||
| HSHF/SSRA/12S-06 | 12 | 6 | 24 | 17 | 19 | 45 | 30 | |
| PN 630 | HSHF/SSRA/12S-08 | 8 | 19 | 45 | 30 | |||
| HSHF/SSRA/12S-10 | 10 | 22 | 46 | 29.5 | ||||
| HSHF/SSRA/14S-06 | 14 | 6 | 27 | 17 | 22 | 47.5 | 33 | |
| PN 630 | HSHF/SSRA/14S-08 | 8 | 19 | 47.5 | 33 | |||
| HSHF/SSRA/14S-10 | 10 | 22 | 48.5 | 32.5 | ||||
| HSHF/SSRA/14S-12 | 12 | 24 | 48.5 | 32.5 | ||||
| HSHF/SSRA/16S-06 | 16 | 6 | 30 | 17 | 24 | 50 | 35 | |
| HSHF/SSRA/16S-08 | 8 | 19 | 50 | 35 | ||||
| PN 630 | HSHF/SSRA/16S-10 | 10 | 22 | 51 | 34.5 | |||
| HSHF/SSRA/16S-12 | 12 | 24 | 51 | 34.5 | ||||
| HSHF/SSRA/16S-14 | 14 | 27 | 54 | 36 | ||||
| HSHF/SSRA/20S-06 | 20 | 6 | 36 | 17 | 28.5 | 54 | 39 | |
| HSHF/SSRA/20S-08 | 8 | 19 | 54 | 39 | ||||
| PN 400 | HSHF/SSRA/20S-10 | 10 | 22 | 55 | 38.5 | |||
| HSHF/SSRA/20S-12 | 12 | 24 | 55 | 38.5 | ||||
| HSHF/SSRA/20S-14 | 14 | 27 | 58 | 40 | ||||
| HSHF/SSRA/20S-16 | 16 | 30 | 58 | 39.5 | ||||
| HSHF/SSRA/25S-06 | 25 | 6 | 46 | 17 | 3.6 | 58 | 43.5 | |
| HSHF/SSRA/25S-08 | 8 | 19 | 58 | 43.5 | ||||
| HSHF/SSRA/25S-10 | 10 | 22 | 59 | 4.3 | ||||
| PN 400 | HSHF/SSRA/25S-12 | 12 | 24 | 59 | 43 | |||
| HSHF/SSRA/25S-14 | 14 | 27 | 62 | 44.5 | ||||
| HSHF/SSRA/25S-16 | 16 | 30 | 62 | 44 | ||||
| HSHF/SSRA/25S-20 | 20 | 36 | 66 | 44 | ||||
| HSHF/SSRA/30S-06 | 30 | 6 | 50 | 17 | 41 | 66 | 51 | |
| HSHF/SSRA/30S-08 | 8 | 19 | 66 | 51 | ||||
| HSHF/SSRA/30S-10 | 10 | 22 | 67 | 50.5 | ||||
| PN 400 | HSHF/SSRA/30S-12 | 12 | 24 | 67 | 50.5 | |||
| HSHF/SSRA/30S-14 | 14 | 27 | 70 | 52 | ||||
| HSHF/SSRA/30S-16 | 16 | 30 | 70 | 51.5 | ||||
| HSHF/SSRA/30S-20 | 20 | 36 | 73 | 51.5 | ||||
| HSHF/SSRA/30S-25 | 25 | 46 | 76 | 52 | ||||
| HSHF/SSRA/38S-06 | 38 | 6 | 60 | 17 | 50 | 70.5 | 56 | |
| HSHF/SSRA/38S-08 | 8 | 19 | 70.5 | 56 | ||||
| HSHF/SSRA/38S-10 | 10 | 22 | 71.5 | 55.5 | ||||
| HSHF/SSRA/38S-12 | 12 | 24 | 71.5 | 55.5 | ||||
| PN 315 | HSHF/SSRA/38S-14 | 14 | 27 | 74.5 | 57 | |||
| HSHF/SSRA/38S-16 | 16 | 30 | 74.5 | 56.5 | ||||
| HSHF/SSRA/38S-20 | 20 | 36 | 78.5 | 56.5 | ||||
| HSHF/SSRA/38S-25 | 25 | 46 | 81.5 | 57 | ||||
| HSHF/SSRA/38S-30 | 30 | 50 | 85.5 | 58.5 | ||||
