Swivel Adapter Metric Parallel With Cone
Hydraulic Fittings
Series |

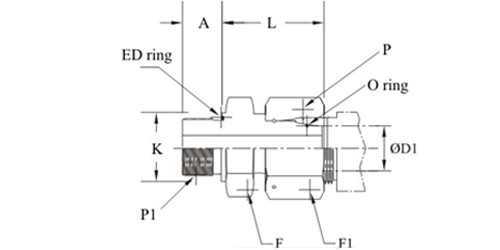

Part No. | Tube OD1 |
F1 | F | K | L | A | P1 G |
P |
| L | HSHF/SLA/06L-02G | 6 | 14 | 14 | 14 | 24.5 | 8 | 1/8 | M 12 x 1.5 |
| Light | HSHF/SLA/08L-04G | 8 | 17 | 19 | 19 | 29.5 | 12 | 1/4 | M 14 x 1.5 |
| PN 315 | HSHF/SLA/10L-04G | 10 | 19 | 19 | 19 | 27.5 | 12 | 1/4 | M 16 x 1.5 |
| HSHF/SLA/12L-06G | 12 | 22 | 22 | 22 | 34 | 12 | 3/8 | M 18 x 1.5 | |
| HSHF/SLA/15L-08G | 15 | 27 | 27 | 27 | 32 | 14 | 1/2 | M 22 x 1.5 | |
| HSHF/SLA/18L-08G | 18 | 32 | 27 | 27 | 31.5 | 14 | 1/2 | M 26 x 1.5 | |
| PN 160 | HSHF/SLA/22L-02G | 22 | 36 | 32 | 32 | 32.5 | 16 | 3/4 | M 30 x 2 |
| HSHF/SLA/28L-02G | 28 | 41 | 41 | 40 | 35 | 18 | 1 | M 36 x 2 | |
| HSHF/SLA/35L-02G | 35 | 50 | 50 | 50 | 42.5 | 20 | 1 1/4 | M 45 x 2 | |
| HSHF/SLA/42L-02G | 42 | 60 | 55 | 55 | 46.5 | 22 | 1 1/2 | M 52 x 2 | |
| S | HSHF/SLA/06S-04G | 6 | 17 | 19 | 19 | 27 | 12 | 1/4 | M 14 x 1.5 |
| heavy | HSHF/SLA/08S-04G | 8 | 19 | 19 | 19 | 29.5 | 12 | 1/4 | M 16 x 1.5 |
| PN 630 | HSHF/SLA/10S-06G | 10 | 22 | 22 | 22 | 32 | 12 | 3/8 | M 18 x 1.5 |
| HSHF/SLA/12S-06G | 12 | 24 | 22 | 22 | 34 | 12 | 3/8 | M 20 x 1.5 | |
| HSHF/SLA/14S-08G | 14 | 27 | 27 | 27 | 36.5 | 14 | 1/2 | M 22 x 1.5 | |
| PN 400 | HSHF/SLA/16S-08G | 16 | 30 | 27 | 27 | 37 | 14 | 1/2 | M 24 x 1.5 |
| HSHF/SLA/20S-12G | 20 | 36 | 32 | 32 | 43 | 16 | 3/4 | M 30 x 2 | |
| HSHF/SLA/25S-16G | 25 | 46 | 41 | 40 | 48 | 18 | 1 | M 36 x 2 | |
| HSHF/SLA/30S-20G | 30 | 50 | 50 | 50 | 51 | 20 | 1 1/4 | M 42 x 2 | |
| PN 315 | HSHF/SLA/38S-24G | 38 | 60 | 55 | 55 | 60 | 22 | 1 1/2 | M 52 x 2 |
