Male Elbow BSP Tapered Metric

Hydraulic Fittings

Stainless Steel Hydraulic Male Elbow BSP Tapered Metric Fittings Exporter


Series Port No Tube

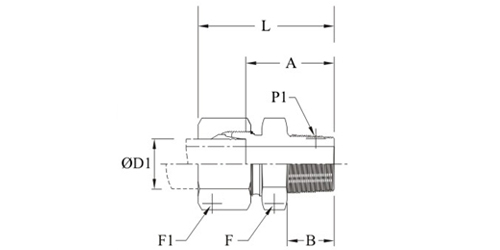

OD1 		F1 F L L1 A B P1
R
LL HSHF/ME/04LL-02R 4 10 9 21 17 11 10 1/8
Very HSHF/ME/06LL-02R 6 12 9 21 17 9.5 10 1/8
Light HSHF/ME/08LL-02R 8 14 12 23 20 11.5 10 1/8
PN 100 HSHF/ME/10LL-04R 10 17 14 24 23 12.5 14 1/4
  HSHF/ME/12LL-04R 12 19 17 25 23 1.3 14 1/4
L HSHF/ME/06L-02R 6 14 12 27 20 1.3 10 1/8
Light HSHF/ME/08L-04R 8 17 12 29 26 14 14 1/4
PN 315 HSHF/ME/10L-04R 10 19 14 30 27 15 14 1/4
  HSHF/ME/12L-06R 12 22 17 32 28 17 15 3/8
  HSHF/ME/15L-08R 15 27 19 36 34 21 19 1/2
  HSHF/ME/18L-08R 18 32 24 40 36 23.5 19 1/2
S HSHF/ME/06S-04R 6 17 12 31 26 16 14 1/4
Heavy HSHF/ME/08S-04R 8 19 14 32 27 17 14 1/4
PN 400 HSHF/ME/10S-06R 10 22 17 34 28 17.5 15 3/8
  HSHF/ME/12S-06R 12 24 11 38 28 21.5 15 3/8
  HSHF/ME/14S-08R 14 27 19 40 32 22 19 1/2
  HSHF/ME/16S-08R 16 30 24 43 32 24.5 19 1/2


Series Port No Tube
OD1 		F1 F L L1 A B P1-Taper
Metric
LL-very HSHF/ME/04LL-08MT 4 10 9 21 17 11 8 08 x 1Keg
light HSHF/ME/06LL-10MT 6 12 9 21 17 9.5 8 10 x 1Keg
PN 100 HSHF/ME/08LL-10MT 8 14 12 23 20 11.5 8 10 x 1Keg
L HSHF/ME/06L-10MT 6 14 12 27 20 1.2 8 10 x 1Keg
light HSHF/ME/08L-12MT 8 17 12 29 26 14 12 12 x 1.5Keg
PN 315 HSHF/ME/10L-14MT 10 19 14 30 27 1.5 12 14 x 1.5Keg
  HSHF/ME/12L-16MT 12 22 17 32 28 1.7 14 16 x 1.5Keg
  HSHF/ME/15L-18MT 15 27 19 36 34 21 14 18 x 1.5Keg
  HSHF/ME/18L-22MT 18 32 24 40 36 23.5 17 22 x 1.5Keg
S HSHF/ME/06S-12MT 6 17 12 31 26 16 12 12 x 1.5Keg
heavy HSHF/ME/08S-14MT 8 19 14 32 27 17 12 14 x 1.5Keg
PN 400 HSHF/ME/10S-16MT 10 22 17 34 28 17.5 12 16 x 1.5Keg
  HSHF/ME/12S-18MT 12 24 11 38 28 21.5 12 18 x 1.5Keg
  HSHF/ME/14S-20MT 14 27 19 40 32 22 14 20 x 1.5Keg
  HSHF/ME/16S-22MT 16 30 24 43 32 24.5 17 22 x 1.5Keg
