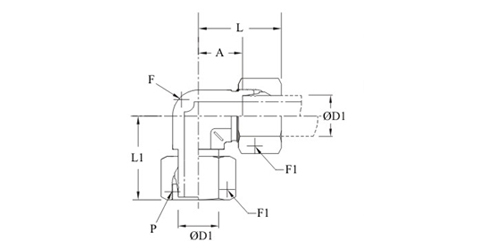

Adjustable Elbow With Standpipe
Hydraulic Fittings
| Series | Part No | Tube OD1 |
OD1 | F1 | F | L | L1 | A | P |
| L | HSHF/AE/06L | 6 | 6 | 14 | 12 | 27 | 26 | 12 | M 12x1.5 |
| light | HSHF/AE/08L | 8 | 8 | 17 | 12 | 29 | 27.5 | 14 | M 14x1.5 |
| PN 315 | HSHF/AE/10L | 10 | 10 | 19 | 14 | 30 | 29 | 15 | M 16x1.5 |
| HSHF/AE/12L | 12 | 12 | 22 | 17 | 32 | 29.5 | 17 | M 18x1.5 | |
| HSHF/AE/15L | 15 | 15 | 27 | 19 | 36 | 32.5 | 21 | M 22x1.5 | |
| HSHF/AE/18L | 18 | 18 | 32 | 24 | 40 | 35.5 | 2.5 | M 26x1.5 | |
| PN 160 | HSHF/AE/22L | 22 | 22 | 36 | 27 | 44 | .835 | 27.5 | M 30x2 |
| HSHF/AE/28L | 28 | 28 | 41 | 36 | 47 | 41.5 | 30.5 | M 36x2 | |
| HSHF/AE/35L | 35 | 35 | 50 | 41 | 56 | 51 | 34.5 | M 45x2 | |
| HSHF/AE/42L | 42 | 42 | 60 | 50 | 63 | 56 | 40 | M 52x2 | |
| S | HSHF/AE/06S | 6 | 6 | 17 | 12 | 31 | 27 | 16 | M 14x1.5 |
| heavy | HSHF/AE/08S | 8 | 8 | 19 | 14 | 32 | 27.5 | 17 | M 16x1.5 |
| PN 630 | HSHF/AE/10S | 10 | 10 | 22 | 17 | 34 | 30 | 17.5 | M 18x1.5 |
| HSHF/AE/12S | 12 | 12 | 24 | 17 | 38 | 31 | 21.5 | M 22x1.5 | |
| HSHF/AE/14S | 14 | 14 | 27 | 19 | 40 | 35 | 22 | M 22x1.5 | |
| PN 400 | HSHF/AE/16S | 16 | 16 | 30 | 24 | 43 | 36.5 | 24.5 | M 24x1.5 |
| HSHF/AE/20S | 20 | 20 | 36 | 27 | 48 | 44.5 | 26.5 | M 30x2 | |
| HSHF/AE/25S | 25 | 25 | 46 | 36 | 54 | 50 | 30 | M 36x2 | |
| HSHF/AE/30S | 30 | 30 | 50 | 41 | 62 | 55 | 35.5 | M 42x2 | |
| PN 38 | HSHF/AE/38S | 38 | 38 | 60 | 50 | 72 | 63 | 41 | M 52x2 |
