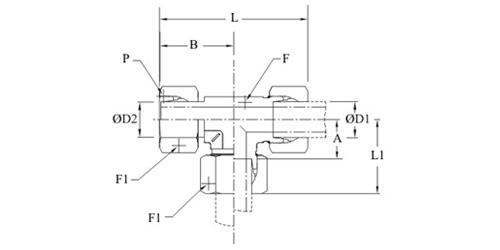

Adjustable Run Tee With Standpipe
Hydraulic Fittings
| Series | Part No | Tube OD1 |
OD2 | F | F1 | L1 | L | A | B | P |
| L | HSHF/ART/06L | 6 | 6 | 12 | 14 | 27 | 53 | 12 | 26 | M 12x1.5 |
| light | HSHF/ART/08L | 8 | 8 | 12 | 17 | 29 | 56 | 14 | 27.5 | M 14x1.5 |
| PN 315 | HSHF/ART/10L | 10 | 10 | 14 | 19 | 30 | 59 | 15 | 29 | M 16x1.5 |
| HSHF/ART/12L | 12 | 12 | 17 | 22 | 32 | 62 | 17 | 29.5 | M 18x1.5 | |
| HSHF/ART/15L | 15 | 15 | 19 | 27 | 36 | 69 | 21 | 32.5 | M 22x1.5 | |
| HSHF/ART/18L | 18 | 18 | 24 | 32 | 40 | 75 | 2.5 | 35.5 | M 26x1.5 | |
| PN 160 | HSHF/ART/22L | 22 | 22 | 27 | 36 | 44 | 83 | 27.5 | 38.5 | M 30x2 |
| HSHF/ART/28L | 28 | 28 | 36 | 41 | 47 | 91 | 30.5 | 41.5 | M 36x2 | |
| HSHF/ART/35L | 35 | 35 | 41 | 50 | 56 | 111 | 34.5 | 51 | M 45x2 | |
| HSHF/ART/42L | 42 | 42 | 50 | 60 | 63 | 123 | 40 | 56 | M 52x2 | |
| S | HSHF/ART/06S | 6 | 6 | 12 | 17 | 31 | 58 | 16 | 27 | M 14x1.5 |
| heavy | HSHF/ART/08S | 8 | 8 | 14 | 19 | 32 | 61 | 17 | 27.5 | M 16x1.5 |
| PN 630 | HSHF/ART/10S | 10 | 10 | 17 | 22 | 34 | 66 | 17.5 | 30 | M 18x1.5 |
| HSHF/ART/12S | 12 | 12 | 17 | 24 | 38 | 71 | 21.5 | 31 | M 22x1.5 | |
| HSHF/ART/14S | 14 | 14 | 19 | 27 | 40 | 75 | 22 | 35 | M 22x1.5 | |
| PN 400 | HSHF/ART/16S | 16 | 16 | 24 | 30 | 43 | 79 | 24.5 | 36.5 | M 24x1.5 |
| HSHF/ART/20S | 20 | 20 | 27 | 36 | 48 | 93 | 26.5 | 44.5 | M 30x2 | |
| HSHF/ART/25S | 25 | 25 | 36 | 46 | 54 | 105 | 30 | 50 | M 36x2 | |
| HSHF/ART/30S | 30 | 30 | 41 | 50 | 62 | 119 | 35.5 | 55 | M 42x2 | |
| PN 315 | HSHF/ART/38S | 38 | 38 | 50 | 60 | 72 | 138 | 41 | 63 | M 52x2 |
