Male Connector Metric Parallel
Hydraulic Fittings

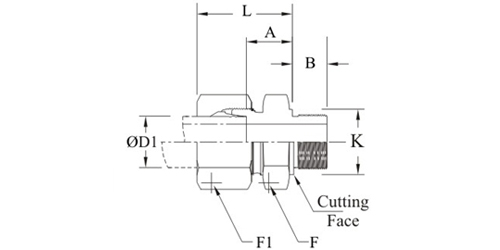

| Series | Part No | Tube OD1 |
F1 | F | K | L | A | B | P1 M (Metric) |
| L | HSHF/MC/06L-10M | 6 | 14 | 14 | 14 | 23 | 8.5 | 8 | M 10x1 |
| light | HSHF/MC/08L-12M | 8 | 17 | 17 | 17 | 25 | 10 | 12 | M 12x1.5 |
| PN 315 | HSHF/MC/08L-18M | 8 | 17 | 24 | 23 | 26 | 11.5 | 12 | M 18x1.5 |
| HSHF/MC/10L-14M | 10 | 19 | 19 | 19 | 26 | 11 | 12 | M 14x1.5 | |
| HSHF/MC/10L-16M | 10 | 19 | 22 | 21 | 27 | 12 | 12 | M 16x1.5 | |
| HSHF/MC/10L-18M | 10 | 19 | 24 | 23 | 27 | 12.5 | 12 | M 18x1.5 | |
| HSHF/MC/10L-22M | 10 | 19 | 27 | 27 | 29 | 14 | 14 | M 22x1.5 | |
| HSHF/MC/12L-14M | 12 | 22 | 19 | 19 | 26 | 11 | 12 | M 14x1.5 | |
| HSHF/MC/12L-16M | 12 | 22 | 22 | 21 | 27 | 12.5 | 12 | M 16x1.5 | |
| HSHF/MC/12L-18M | 12 | 22 | 24 | 23 | 27 | 12.5 | 12 | M 18x1.5 | |
| HSHF/MC/12L-22M | 12 | 22 | 27 | 27 | 29 | 14 | 14 | M 22x1.5 | |
| HSHF/MC/15L-16M | 15 | 27 | 24 | 21 | 28 | 13 | 12 | M 16x1.5 | |
| HSHF/MC/15L-18M | 15 | 27 | 24 | 23 | 29 | 13.5 | 12 | M 18x1.5 | |
| HSHF/MC/15L-22M | 15 | 27 | 27 | 27 | 30 | 15 | 14 | M 22x1.5 | |
| HSHF/MC/18L-18M | 18 | 32 | 27 | 23 | 30 | 14 | 12 | M 18x1.5 | |
| HSHF/MC/18L-22M | 18 | 32 | 27 | 27 | 31 | 14.5 | 14 | M 22x1.5 | |
| PN 160 | HSHF/MC/22L-22M | 22 | 36 | 32 | 27 | 33 | 16.5 | 14 | M 22x1.5 |
| HSHF/MC/22L-26M | 22 | 36 | 32 | 31 | 33 | 16.5 | 16 | M 26x1.5 | |
| HSHF/MC/28L-33M | 28 | 41 | 41 | 39 | 34 | 17.5 | 18 | M 33x2 | |
| HSHF/MC/35L-42M | 35 | 50 | 50 | 49 | 39 | 17.5 | 20 | M 42x2 | |
| HSHF/MC/42L-48M | 42 | 60 | 55 | 55 | 42 | 19 | 22 | M 48x2 | |
| S | HSHF/MC/06S-12M | 6 | 17 | 17 | 17 | 28 | 13 | 12 | M 12x1.5 |
| heavy | HSHF/MC/08S-14M | 8 | 19 | 19 | 19 | 30 | 15 | 12 | M 14x1.5 |
| PB 630 | HSHF/MC/10S-16M | 10 | 22 | 22 | 21 | 31 | 15 | 12 | M 16x1.5 |
| HSHF/MC/12S-18M | 12 | 24 | 24 | 23 | 33 | 17 | 12 | M 18x1.5 | |
| HSHF/MC/12S-22M | 12 | 24 | 24 | 27 | 34 | 17.5 | 14 | M 22x1.5 | |
| HSHF/MC/14S-20M | 14 | 27 | 27 | 25 | 37 | 19 | 14 | M 20x1.5 | |
| PB 400 | HSHF/MC/16S-18M | 16 | 30 | 27 | 23 | 36 | 18 | 12 | M 18x1.5 |
| HSHF/MC/16S-22M | 16 | 30 | 27 | 27 | 37 | 18.5 | 14 | M 22x1.5 | |
| HSHF/MC/20S-27M | 20 | 36 | 32 | 32 | 42 | 20.5 | 16 | M 27x2 | |
| HSHF/MC/25S-33M | 25 | 46 | 41 | 39 | 47 | 23 | 18 | M 33x2 | |
| PB 250 | HSHF/MC/30S-42M | 30 | 50 | 50 | 49 | 50 | 23.5 | 20 | M 42x2 |
| HSHF/MC/38S-48M | 38 | 60 | 55 | 55 | 57 | 26 | 22 | M 48x2 |
