Needle Valve
| DOUBLE BONNET ASSEMBLY |
|
No
|
Description
|
Material |
Qty.
|
| 1 |
Body |
SS 316 |
1 |
| 2 |
Spindle Tip |
17-4 PH |
1 |
| 3 |
Bonnet |
SS 316 |
1 |
| 4 |
Adj. Bonnet |
SS 316 |
1 |
| 5 |
Check Nut |
SS 316 |
1 |
| 6 |
Spindle |
17-4 PH |
1 |
| 7 |
"O" Ring |
Viton* |
2 |
| 8 |
Packing |
Telfon |
2 |
| 9 |
Stopper Pin |
SS |
1 |
| 10 |
Handle |
SS |
1 |
| 11 |
Dust Cap |
Nylon |
1 |
| 12 |
Grub Screw |
SS |
1 |
*For 10,000 psi. Teflon and SS ring
| |
|

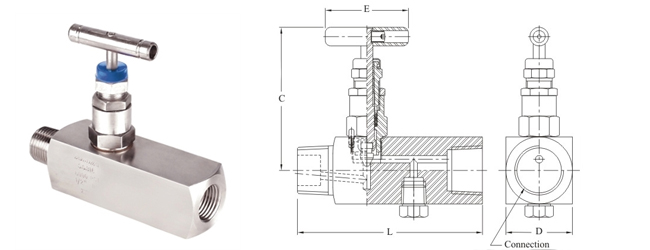

Part No
|
Connection
Inlet-M |
Outlet-F |
L
|
D
(sq.) |
C
(max.open) |
E
|
Orifice |
Cv |
| HSAGB 4N 2 |
1/4" |
1/4" |
70 |
25 |
62 |
45 |
4 |
0.35 |
| HSAGB 6N 2 |
3/8" |
3/8" |
70 |
25 |
62 |
45 |
4 |
0.35 |
| HSAGB 8N 2 |
1/2" |
1/2" |
75 |
06 |
84 |
55 |
4.9 |
0.65 |
Note :
- For 10,000 psi, Suffix 10K to Model no. eg.: AN 2N1-10K
- For BSPP connection use G instead of N. eg. AN 2G 1.
- For temperature rating of 400 ºC, Grafoil packing add - GF to Part no.
- All dimensions are in Millimeter and for reference only.
