MINI NEEDLE VALVE-AM
Needle Valve
Metal Ministry Inc.'Smini series Needle valves are designed for economical and long service life. These can be used for throttling and straight isolation in process and flow control application. These valves are available in 1/4”, 3/8” and 1/2” threaded connections, as per requirements of chemical, petrochemical, oil & gas Industries.
FEATURES MINI NEEDLE VALVE-AM
- Valves design provides in-line pipe connections for 1/4” to 1/2” pipe sizes.
- Rising stem & bar stock body design.
- Metal-to-metal seating achieves buddle-tight shut-off, longer stem/seal life in abrasive flow, greater durability for repeated on/off cycles and excellent corrosion resistance.
- Stem sleeve and packing gland materials have been carefully chosen to achieve extended thread cycle life and reduced handle torque.
- Operating temperature range from 0° F(-17°C) to 100°F @ 6000 psi.
- Available in 316 Stainless Steel, Monel, Duplex & other exotic material.
- Complete material traceability.
- Also available with material compliance to NACE MR-01-75.
- BSPP, BSPT, ISO, Socket & Butt Weld etc. connections available on request.
- Spindle is thread rolled and burnished for smooth operation and long life.
- All valves are 100% factory tested with Nitrogen at 70 Bar or Hydro tested at 1.5 times of working pressure.
- Dust and thread caps are provided as standard.
- Threads : N=NPT, G=BSPP, R=BSPT, other option on request.

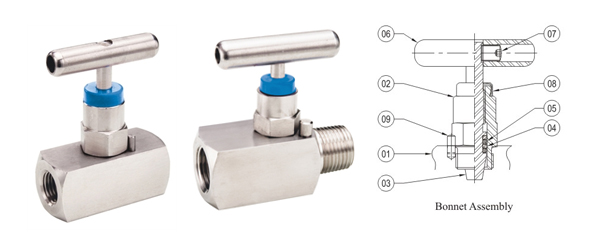

| DOUBLE BONNET ASSEMBLY | |||
| No | Description |
Material | Qty. |
| 1 | Body | SS 316 | 1 |
| 2 | Bonnet | SS 316 | 1 |
| 3 | Spindle Tip | SS 316 | 1 |
| 4 | Packing | Telfon | 2 |
| 5 | "O" Ring | Viton* | 2 |
| 6 | Handle | SS | 1 |
| 7 | Grub Screw | CS | 1 |
| 8 | Dust Cap | Nylon | 1 |
| 9 | Stopper Pin | SS | 1 |
