NEEDLE VALVE-AA (ANGLE VALVE)

Needle Valve

Stainless Steel Nickel Monel Brass NEEDLE VALVE-AA (ANGLE VALVE) Manufacturer

Metal Ministry Inc.'S standard series Needle valves are designed for stringent application in Oil & Gas, Chemical, Petrochemical etc. industries. These can be used for throttling and straight isolation in process or flow control applications. These metal seated valves are machined from square bar stock and are available in sizes 1/8” to 2” in various connections. 10000 psi valves are rated upto 1” pipe size.

FEATURES NEEDLE VALVE-AA (ANGLE VALVE)

  • Valves design provides in-line pipe connections for 1/8” to 2” pipe sizes.
  • Rising stem & bar stock body design.
  • Metal-to-Metal seating achieves buddle-tight shut-off, longer stem/seal life in abrasive flow, greater durability for repeated on/off cycles and excellent corrosion resistance.
  • Stem sleeve and packing gland materials have been carefully chosen to achieve extended
  • thread cycle life and reduced handle torque.
  • Available in 316 Stainless Steel, Monel, Duplex & other exotic material.
  • Complete material traceability.
  • Also available with material compliance to NACE MR-01-75.
  • BSPP, BSPT, ISO, Socket & Butt Weld etc. connections available on request.
  • Spindle is thread rolled and burnished for smooth operation and long life.
  • Non-rotating hardened (17-4PH) are standard for long service life.
  • Temperature range 100°C to 230°C (400°C with GF option) All valves are 100% factory tested with Nitrogen at 70 Bar or Hydro tested at 1.5 times of working pressure.
  • Dust and thread caps are provided as standard.
  • Threads : N=NPT, G=BSPP, R=BSPT, other option on request.

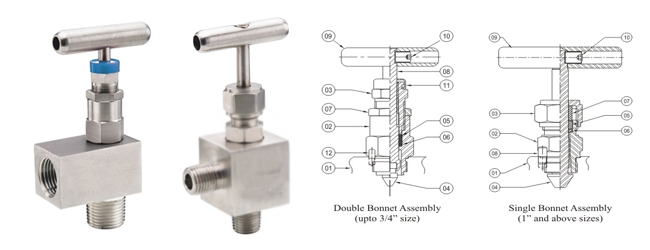

DOUBLE BONNET ASSEMBLY
No Description Material Qty
1 Body SS 316 1
2 Bonnet SS 316 1
3 Adj. Bonnet SS 316 1
4 Spindle Tip 17-4 PH 1
5 Packing Telfon 2
6 "O" Ring Viton* 2
7 Check Nut SS 316 1
8 Spindle SS 316 1
9 Handle SS 1
10 Grub Screw CS 1
11 Dust Cap Nylon 1
12 Stopper Pin SS 1

SINGLE BONNET ASSEMBLY
No Description Material Qty.
1 Body SS 316 1
2 Bonnet SS 316 1
3 Gland Nut SS 316 1
4 Spindle Tip 17-4 PH 1
5 Packing Telfon 2
6 Steel Ring SS 316 1
7 Steel Bush SS 316 1
8 Stopper Pin SS 1
9 Handle SS 1
10 Grub Screw CS 1
