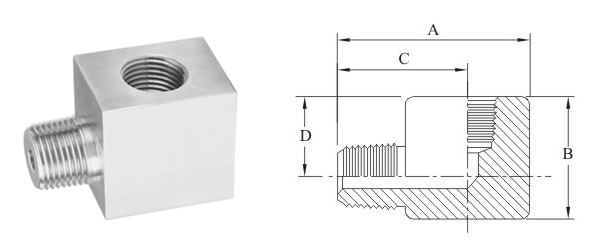

Street Elbow (SE)
Valves - High Pressure Systems
| STREET ELBOW | |||||||||
| Part No. | Connection Type - NPT | Pressure Rating | Mini Opening | Dimensions-mm | Block Thickness | ||||
| psi | bar* | A | B | C | D | ||||
| HSSE15SE4MN | 1/4" | 15,000 | 1034.20 | 5.54 | 38.10 | 38.10 | 28.70 | 25.40 | 19.05 |
| HSSE15SE6MN | 3/8" | 15,000 | 1034.20 | 7.54 | 44.75 | 44.75 | 31.75 | 25.40 | 25.40 |
| HSSE15SE8MN | 1/2" | 15,000 | 1034.20 | 9.12 | 50.80 | 50.80 | 38.10 | 25.40 | 31.75 |
