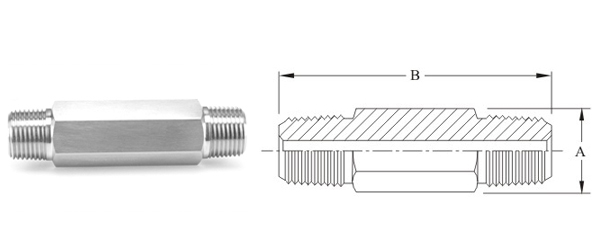

Long Nipple (LN)
Valves - High Pressure Systems
| Part No. | Connection Type - NPT |
Pressure Rating | Mini Opening | Dimensions-mm | ||
| Description | psi | bar* | A-Hex | B | ||
| HS15LNMN100 | 1/4" | 15,000 | 1034.20 | 5.54 | 5/8" | 100 |
| HS15LN4MN150 | 1/4" | 15,000 | 1034.20 | 5.54 | 5/8" | 150 |
| HS15LN4MN200 | 1/4" | 15,000 | 1034.20 | 5.54 | 5/8" | 200 |
| HS15LN6MN100 | 3/8" | 15,000 | 1034.20 | 7.54 | 3/4" | 100 |
| HS15LN6MN150 | 3/8" | 15,000 | 1034.20 | 7.54 | 3/4" | 150 |
| HS15LN6MN200 | 3/8" | 15,000 | 1034.20 | 7.54 | 3/4" | 200 |
| HS15LN8MN100 | 1/2" | 15,000 | 1034.20 | 9.12 | 1" | 100 |
| HS15LN8MN150 | 1/2" | 15,000 | 1034.20 | 9.12 | 1" | 150 |
| HS15LN8MN200 | 1/2" | 15,000 | 1034.20 | 9.12 | 1" | 100 |
| HS10LN12MN100 | 3/4" | 10,000 | 689.46 | 14.47 | 1-3/16" | 100 |
| HS10LN12MN150 | 3/4" | 10,000 | 689.46 | 14.47 | 1-3/16" | 150 |
| HS10LN12MN200 | 3/4" | 1,0000 | 689.46 | 14.47 | 1-3/16" | 200 |
| HS10LN16MN100 | 1" | 10,000 | 689.46 | 19.43 | 1-3/8" | 100 |
| HS10LN16MN150 | 1" | 10,000 | 689.46 | 19.43 | 1-3/8" | 150 |
| HS10LN16MN200 | 1" | 10,000 | 689.46 | 19.43 | 1-3/8" | 200 |
