Bulkhead Coupling BC
Valves - High Pressure Systems

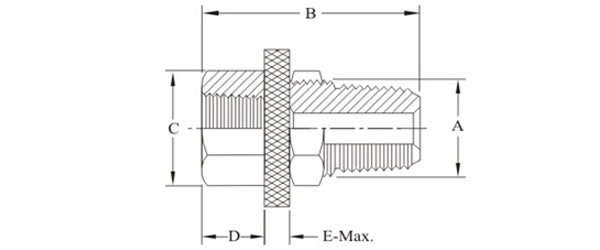

| Bulkhead Coupling (BC) | |||||||||
| Part No. | ConnectionType - NPT | Pressure Rating | Mini Opening | Dimensions-mm | E-max | ||||
| Description | psi | bar* | A | B | C-Hex | D | |||
| HS15BC4FN | 1/4" | 15,000 | 1034.20 | 10.67 | 23.80 | 50.80 | 1" | 15.75 | 9.65 |
| HS15BC6FN | 3/8" | 15,000 | 1034.20 | 14.22 | 28.60 | 60.50 | 1-3/8" | 20.07 | 9.65 |
| HS15BC8FN | 1/2" | 15,000 | 1034.20 | 17.53 | 33.25 | 66.80 | 1-1/2" | 23.11 | 9.65 |
| HS10BC12FN | 3/4" | 10,000 | 689.46 | 22.61 | 42.67 | 66.80 | 1-3/4" | 23.11 | 9.65 |
| HS10BC16FN | 1" | 10,000 | 689.46 | 28.58 | 47.60 | 88.90 | 2" | 38.10 | 9.65 |
