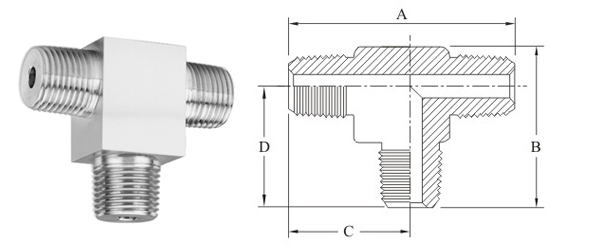

Male Tee (MT)
Valves - High Pressure Systems
| Part No. | Connection Type - NPT | Pressure Rating | Mini Opening | Dimensions-mm | Block Thickness | ||||
| Description | psi | bar* | A | B | C | D | |||
| HS15MT4MN | 1/4" | 15,000 | 1034.20 | 5.54 | 57.15 | 38.10 | 28.70 | 31.75 | 19.05 |
| HS15MT6MN | 3/8" | 15,000 | 1034.20 | 7.54 | 63.50 | 44.45 | 44.45 | 31.75 | 25.40 |
| HS15MT8MN | 1/2" | 15,000 | 1034.20 | 9.12 | 76.20 | 50.80 | 38.10 | 38.10 | 31.75 |
| HS10MT12MN | 3/4" | 10,000 | 689.46 | 14.47 | 88.90 | 66.55 | 44.45 | 44.45 | 38.10 |
| HS10MT16MN | 1" | 10,000 | 689.46 | 19.43 | 104.65 | 76.20 | 54.10 | 54.10 | 44.45 |
