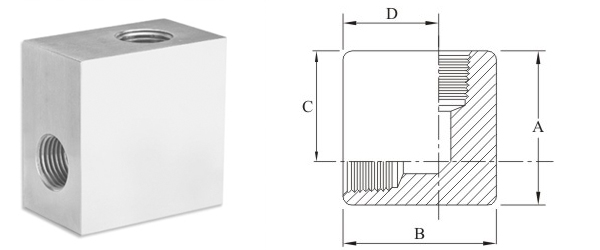

Female Elbow (FE)
Valves - High Pressure Systems
| Part No. | Connection Type - NPT | Pressure Rating | Mini Opening | Dimensions-mm | Block Thickness | ||||
| Description | psi | bar* | A | B | C | D | |||
| HS15FE4FN | 1/4" | 15,000 | 1034.20 | 10.67 | 28.58 | 38.10 | 19.05 | 19.05 | 19.05 |
| HS15FE6FN | 3/8" | 15,000 | 1034.20 | 14.22 | 38.10 | 50.80 | 25.40 | 25.40 | 25.40 |
| HS15FE8FN | 1/2" | 15,000 | 1034.20 | 17.53 | 47.75 | 76.20 | 31.75 | 31.75 | 31.75 |
| HS10FE12FN | 3/4" | 10,000 | 689.46 | 22.61 | 55.37 | 76.20 | 38.10 | 38.10 | 38.10 |
| HS10FE16FN | 1" | 10,000 | 689.46 | 28.58 | 63.50 | 104.65 | 39.67 | 39.67 | 44.45 |
