Hex Reducing Nipple
Precision Pipe Fittings

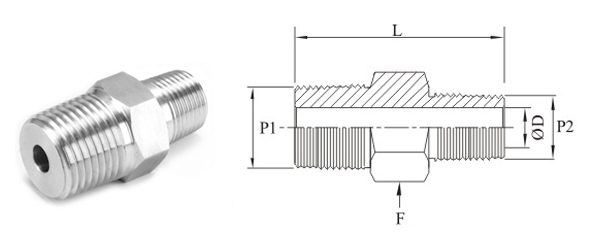

| HEX RUDUCING NIPPLE | |||||
| Part No | P1 P2 NPTM NPTM | OD inch | L inch | F HEX | |
| HSHRN/2-1l | 1/8 | 1/16 | 0.12 | 1.01 | 7/16 |
| HSHRN/4-1l | 1/4 | 1/16 | 0.12 | 1.25 | 5/8 |
| HSHRN/4-2l | 1/4 | 1/8 | 0.19 | 1.22 | 9/16 |
| HSHRN/6-1l | 3/8 | 1/16 | 0.19 | 1.27 | 3/4 |
| HSHRN/6-2l | 3/8 | 1/8 | 0.19 | 1.25 | 11/16 |
| HSHRN/6-4l | 3/8 | 1/4 | 0.28 | 1.43 | 11/16 |
| HSHRN/8-2l | 1/2 | 1/8 | 0.19 | 1.47 | 7/8 |
| HSHRN/8-4l | 1/2 | 1/4 | 0.28 | 1.65 | 7/8 |
| HSHRN/8-6l | 1/2 | 3/8 | 0.38 | 1.65 | 7/8 |
| HSHRN/12-4l | 3/4 | 1/4 | 0.28 | 1.65 | 1-1/16 |
| HSHRN/12-6l | 3/4 | 3/8 | 0.38 | 1.65 | 1-1/16 |
| HSHRN/12-8l | 3/4 | 1/2 | 0.47 | 1.84 | 1-1/16 |
| HSHRN/12-2l | 3/4 | 1/8 | 0.19 | 1.59 | 1-1/16 |
| HSHRN/16-2l | 1 | 1/8 | 0.19 | 1.78 | 1-3/8 |
| HSHRN/16-4l | 1 | 1/4 | 0.28 | 1.97 | 1-3/8 |
| HSHRN/16-6l | 1 | 3/8 | 0.38 | 1.97 | 1-3/8 |
| HSHRN/16-8l | 1 | 1/2 | 0.47 | 2.13 | 1-3/8 |
| HSHRN/16-12l | 1 | 3/4 | 0.62 | 2.13 | 1-3/8 |
| HSHRN/20l-16l | 1-1/4 | 1 | 61.50 | 1-3/4 | 24.6/23.9 |
