Female to Hose Connector-Hose IT to NPT Female
Precision Pipe Fittings

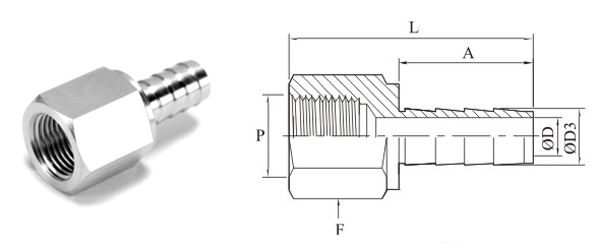

| FEMALE TO HOSE CONNECTOR | |||||||
| Part No | OD3 HOSE | P NPTF | OD | A | L | F HEX | |
| HSFHC/2l-2 | 1/8 | 3.80 | 1/8 | 2.00 | 10.2 | 28.2 | 9/16 |
| HSFHC/2l-4 | 1/8 | 3.80 | 1/4 | 2.00 | 10.2 | 32.0 | 3/4 |
| HSFHC/3l-2 | 3/16 | 5.84 | 1/8 | 3.00 | 15.0 | 32.8 | 9/16 |
| HSFHC/3l-4 | 3/16 | 5.84 | 1/4 | 3.00 | 15.0 | 36.6 | 3/4 |
| HSFHC/4l-2 | 1/4 | 7.62 | 1/8 | 4.80 | 20.1 | 37.3 | 9/16 |
| HSFHC/4l-4 | 1/4 | 7.62 | 1/4 | 4.80 | 20.1 | 41.7 | 3/4 |
| HSFHC/4l-6 | 1/4 | 7.62 | 3/8 | 4.80 | 20.1 | 43.4 | 7/8 |
| HSFHC/5l-4 | 5/16 | 9.65 | 1/4 | 4.80 | 22.1 | 43.9 | 3/4 |
| HSFHC/5l-6 | 5/16 | 9.65 | 3/8 | 4.80 | 22.1 | 46.2 | 7/8 |
| HSFHC/6l-4 | 3/8 | 11.43 | 1/4 | 7.60 | 22.1 | 42.9 | 3/4 |
| HSFHC/6l-6 | 3/8 | 11.43 | 3/8 | 7.60 | 22.1 | 45.2 | 7/8 |
| HSFHC/6l-8 | 3/8 | 11.43 | 1/2 | 7.60 | 22.1 | 51.6 | 11/16 |
| HSFHC/8l-8 | 1/2 | 15.24 | 1/2 | 9.70 | 23.9 | 54.1 | 11/16 |
