Do you want to protect your pressure instruments, gauges, switches & transmitters from high temperature process fluids? Then we, would like to help you by the product, Syphons. Syphons are used to protect those directly coming in contact with high temperature process fluids or vapors. These reduce steam or other process media temperature prior to enter into theses instruments. They are filled with condensation fluids and are mounted between process and pressure instrument. They reduce process pulsation, act as heating dispenser and generate cooling affect to save instrument to work at dangerous temperature.
SPECIFICATION:-

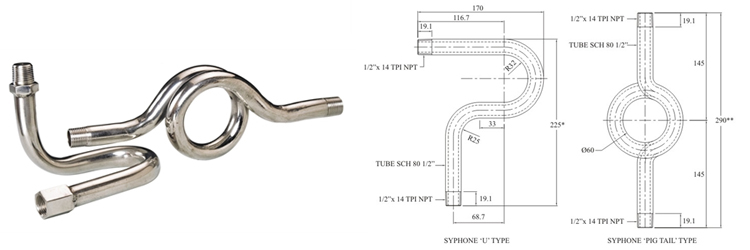

- Type- 'U' and Coil ‘O’
- Operating Temperature- Carbon Steel : 210 Kg/Cm2 at 20°C
- Material of Construction- Stainless Steel : 260 Kg/Cm2 at 20°C
- Gr. B. Carbon Steel, SS304, SS316
- Connection- 1/4”, 3/8”, 1/2” BSP or NPT Male & Female
- Pipe Size - 1/4” & 1/2” inches, Schedule 80/40.
FEATURES:-
- Schedule 40 & schedule 80 seamless pipe construction
OPTION:-
- Schedule 80, schedule 160 and 45 degree angle
| Type |
| Type |
Code |
| U |
U |
| Coil |
O |
| Material Of Costruction |
| Type |
Code |
| SS304 |
S |
| SS316 |
SS |
| Carbon Steel |
CS |
| Thickness |
| Type |
Code |
| Schedule 40 |
4 |
| Schedule 80 |
8 |
| Connection |
| Type |
Code |
| 1/4" |
4 |
| 3/8" |
6 |
| 1/2" |
8 |
| Thread Type |
| Type |
Code |
| Male x Male |
MM |
| Female x Female |
FF |
| Male xFemale |
MF |
* for 1/4" x 3/8" 200mm
**for 1/4" x 3/8" 195mm
