Metal Ministry Inc. is an innovative manufacturing unit, offers an accessory that will increase the life span of Pressure instruments. Pulsation Dampeners are designed to protect pressure instruments from sudden pressure changes and fluctuations of pressuring fluids. Thus sudden pressure changes are damped before they reach the pressure sensing element to minimize stress on it and giving longer life. You can use this with any instruments subjected to rapidly fluctuating pressure or sudden shock pressures.
| SPECIFICATION |
NEEDLE DAMPENERS |
POROUS DAMPENERS |
| Working Pressures |
Up to 400 Kg/Cm² |
Up to 1000 Kg/Cm² |
| Working Teperature |
-20°C to 150°C |
-40°C to 400°C |
| Wetted Parts |
AISI 316 Stainless Steel |
AISI 316 Stainless Steel |
| Priniciple od Operation |
Adjustable Needle |
Porous Metal Filter Disc |
APPLICATION:-
- Hydraulic Machines
- Compressors
- Process Plants, etc
| Material Of Construction |
| Type |
Code |
| SS304 |
4 |
| SS316 |
16 |
| Connection |
| Type |
Code |
| BSP |
B |
| NPT |
N |
| Thread Type |
| Type |
Code |
| 1/4" |
4 |
| 3/8" |
8 |
| 1/2" |
2 |

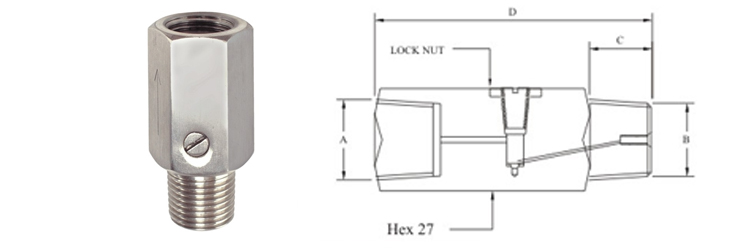

| Set Pressure |
| A x B |
C |
D |
| 1/4 BSP M x 1/4" BSP F |
15.5 |
66 |
| 1/4" NPT M x 1/4 NPT F |
15.5 |
66 |
| 1/2" BSP M x 1/2" BSP F |
20 |
66 |
| 1/2" NPT M x 1/2" NPT F |
20 |
66 |
