Air Header Distributor
Accessories
ORDERING INFORMATION, Please specify followings : Material of construction Number of ports Thread connection (Input & Output) Length of Manifold Working Pressure Temperature rating
FEATURES:-
- Connecting Inlet 1/2"NPT(F) & Outlet 1/2"NPT(F), Drain or Vent 1/4" NPT(F), 1/8" NPT(F), Nos. of valves upto 20, Other configuration upon request.
- Heat code traceability, upon request.
BONNET ASSEMBLY:-
- Screwed bonnet design.
- Bonnet-back seated blow out proof.
- Spindle tip-Non rotating tip shut off type.
- Dust cap protects stem threads from externals contamination.
- Leak tight seal with low operating torque.
TECHANICAL SPECIFICATIONS:-
- Size: 1/2" Inlet x 1/2" Outlet, or 3/4" Inlet x 3/4" Outlet
- End connection: NPT,BSPT,Socket weld.
- Working Pressure: 6000 psi (413 Bar)
- Temperature Rating: PTFE 450°F (232°C), Graphoil 700°F (371°C)
- Material of construction: SS 316, SS 304, C.S.
- Optional Sour Gas service valves are available confirming to NACE Std. MR - 01 - 75
- Stem packing: PTFE, Graphoil.
- Orifice: Dia. 4.7mm
- All manifolds are 100% Factory tested prior to shipment.
APPLICATION:-
- Refineries, liquid petroleum gas processing plant, petrochemical plants, etc.
TESTING:-
- Pneumatic Seat test is performed at 70 bar Nitrogen pressure.
- Hydrostatic shell test is performed at 1.5 times the working pressure.

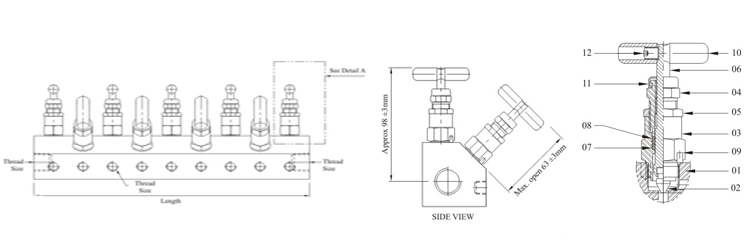

| Air Header Distributor | ||
| # | Description | Material |
| 1 | Body | SS 316 |
| 2 | Spindle Tip | 17-4 PH |
| 3 | Bonnet | SS 316 |
| 4 | Adjustable Bonnet | SS 316 |
| 5 | Check Nut | SS 316 |
| 6 | Spindle | SS 316 |
| 7 | Seal ( O-ring ) | Viton |
| 8 | Packing | Telfon |
| 9 | Stopper Pin | S |
| 10 | Handle | SS |
| 11 | Dust Cap | Nylon |
| 12 | Grub Screw | Cs |
