Manifold AMV 2R3
Manifold Valve
These are two valve isolation manifold with remote mounting (pipe to pipe) feature. Have one process isolation valve and one drain/vent valve. Standard model has one inlet of 1/2” and one outlet of 1/2” with 1/4” vent. Supplied with mounting holes for wall or bracket mounting.
FEATURES MANIFOLD AMV 2R3
- 1x isolation and 1x vent valve for instrument drain/vent applications.
- All valves have 2-piece non-rotating hardened (17-4PH) tips as standard for bubble tight shut off & long service life.
- Metal to Metal body bonnet seal for high pressure and high temperature sealing.
- 2 x 6.5 mm diameter mounting holes as standard.
- Temperature range 100 ºC to 230 ºC (400 ºC with G option).
- Available in 316 Stainless steel, Monel, Duplex & other exotic materials.
- Mounting holes as standard to allow fixing to pipe stand or enclosures.
- Complete material traceability.
- Also available with material compliance to NACE MR-01-75.

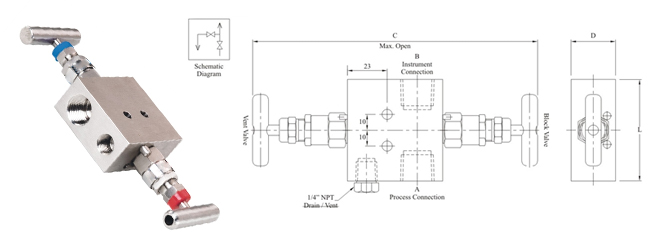

| Part No | A-Pro. Conn. | B-Inst. Conn. | C | D | L |
| HSMAMV 2R 3 8N | 1/2"NPT (F) | 1/2"NPT (F) | 190 | 28.5 | 63.5 |
| HSMAMV 2R 3 4N | 1/4"NPT (F) | 1/4"NPT (F) | 190 | 28.5 | 63.5 |
| HSMAMV 2R 3 8N10K | 1/2"NPT (F) | 1/2"NPT (F) | 190 | 28.5 | 63.5 |
| HSMAMV 2R 3 4N 10K | 1/4"NPT (F) | 1/4"NPT (F) | 190 | 28.5 | 63.5 |
NOTE:
- For BSPT connection use R instead of N. eg. AMV 2R 3 8R.
- For temperature rating of 400 ºC, Grafoil packing add - G to Part no.
- All dimensions are in millimeter and for reference only.
- Valve open tolerance is ±2mm and other ±0.5mm.
