Manifold AMV 2R1
Manifold Valve
These are two valve isolation manifold with remote mounting (pipe to pipe) feature. Have one process isolation valve and one drain/vent valve. Standard model has one inlet of 1/2” and one outlet of 1/2”.
FEATURES MANIFOLD AMV 2R1
- 1 x isolation and 1x vent valve for instrument bleeding.
- All valves have 2-piece non-rotating hardened (17-4PH) tips as standard for bubble tight shut off & long service life.
- Metal to Metal body bonnet seal for high pressure and high temperature sealing.
- Temperature range 100 ºC to 230 ºC (400 ºC with G option).
- Available in 316 Stainless steel, Monel, Duplex & other exotic materials.
- Complete material traceability.
- Also available with material compliance to NACE MR-01-75.

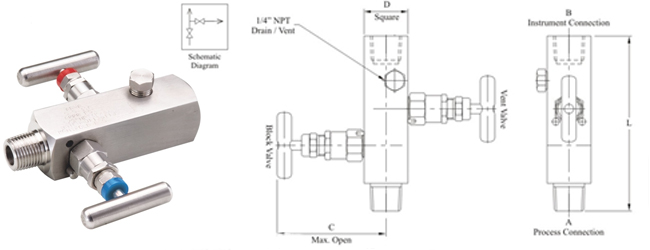

| Part No | A-Pro. Conn. | B-Inst. Conn. | C | D | L |
| HSMAMV 2R 1 8N | 1/2"NPT (M) | 1/2"NPT (F) | 84 | 32 | 115 |
| HSMAMV 2R 1 4N | 1/4"NPT (M) | 1/4"NPT (F) | 84 | 32 | 115 |
| HSMAMV 2R 1 8N10K | 1/2"NPT (M) | 1/2"NPT (F) | 84 | 32 | 115 |
| HSMAMV 2R 1 4N10K | 1/4"NPT (M) | 1/4"NPT (F) | 84 | 32 | 115 |
