Ball Valve
FEATURES OF 2 WAY PANEL BALL VALVE (TUBE END)
- Bar Stock design.
- Bi-directional valve.
- Pressure rating : 6000 PSI.
- Phenolic Handle.
- Thread : N=NPT, G=BSPP, R=BSPT, other option on request.
|

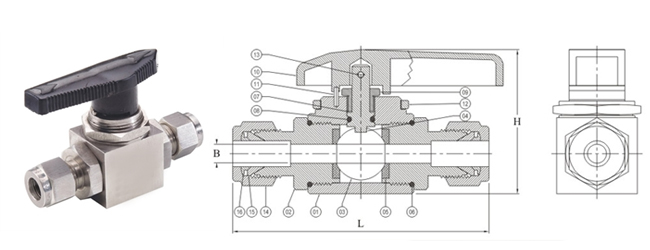

No
|
Description |
Material of Construction |
Qty. |
| 1 |
Body |
SS 316 |
1 |
| 2 |
Adopter |
SS 316 |
2 |
| 3 |
Ball |
SS 316 |
1 |
| 4 |
Spindle |
SS 316 |
1 |
| 5 |
Seat |
P.T.F.E. |
2 |
| 6 |
Joint Seal |
Viton/ Buna-N |
2 |
| 7 |
Gland Seal |
P.T.F.E. |
1 |
| 8 |
"O" Ring |
Viton/ Buna-N |
1 |
| 9 |
Gland Nut |
SS316 |
1 |
| 10 |
Handle |
Nyton |
1 |
| 11 |
Stop Pin |
SS316 |
1 |
| 12 |
Panel Nut |
SS316 |
1 |
| 13 |
L N Screw |
SS304 |
1 |
| 14 |
Nut |
SS316 |
2 |
| 15 |
Front Ferrule |
SS316 |
2 |
| 16 |
Back Ferrule |
SS316 |
2 |
|
Part No
|
INLET/OUTLET
TUBE OD |
Dimension
|
Cv |
|
|
HSPBV/6K/PT-2l
|
1/8" |
73 |
2.4 |
55 |
0.26 |
| HSPBV/6K/PT-4l |
1/4" |
78 |
4.8 |
55 |
1.04 |
| HSPBV/6K/PT-6l |
3/8" |
83 |
7 |
55 |
2.34 |
| HSPBV/6K/PT-8l |
1/2" |
102 |
10 |
60 |
5.80 |
| HSPBV/6K/PT-12l |
3/4" |
115 |
15 |
65 |
6.42 |
| HSPBV/6K/PT-16l |
1" |
135 |
19 |
70 |
7.82 |
| HSPBV/6K/PT-4M |
4mm |
73 |
2.4 |
55 |
0.26 |
| HSPBV/6K/PT-6M |
6mm |
78 |
4.8 |
55 |
1.04 |
| HSPBV/6K/PT-10M |
10mm |
83 |
7 |
55 |
2.34 |
| HSPBV/6K/PT-12M |
12mm |
102 |
10 |
60 |
5.80 |
| HSPBV/6K/PT-18M |
18mm |
115 |
15 |
65 |
6.42 |
| HSPBV/6K/PT-25M |
25mm |
135 |
19 |
70 |
7.82 |
OPTIONAL:
- For BSPP connection use G instead of N. eg. ABV/6K/PT-2G
PRESSURE TEST:
- Every Ball valve is factory tested.
Note : Dimensions are reference only and are subject to change.
