Ball Valve
FEATURES OF 2 PIECE BALL VALVES
- Bar Stock design.
- Bi-directional valve.
- Panel mounting option available.
- Pressure rating : 3000 PSI.
- Thread : N=NPT, G=BSPP, R=BSPT, other option on request.
|

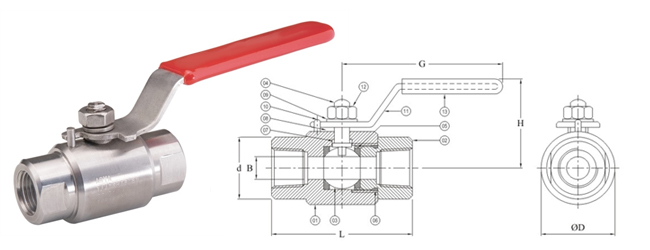

No
|
Description
|
Material of Construction |
Qty. |
| 1 |
Body |
SS 316 |
SS304 |
CS A105 |
1 |
| 2 |
Adopter |
SS 316 |
SS304 |
CS A105 |
1 |
| 3 |
Ball |
SS 316 |
SS304 |
SS304 |
1 |
| 4 |
Stem |
SS 316 |
SS304 |
SS304 |
1 |
| 5 |
Seats |
P.T.F.E. |
P.T.F.E. |
P.T.F.E. |
2 |
| 6 |
Joint Seal |
Viton |
Viton |
Viton |
1 |
| 7 |
Gland Seals |
P.T.F.E. |
P.T.F.E. |
P.T.F.E. |
1 |
| 8 |
Retainer |
SS304 |
SS304 |
SS304 |
1 |
| 9 |
Washer |
SS304 |
SS304 |
CS Plated |
1 |
| 10 |
Stop Pin |
SS304 |
SS304 |
SS304 |
1 |
| 11 |
Handle |
SS304 |
SS304 |
CS Plated |
1 |
| 12 |
Nut |
SS304 |
SS304 |
CS Plated |
1 |
| 13 |
Sleeve |
P.V.C. |
P.V.C. |
P.V.C. |
1 |
|
Part No
|
INLET
NPT-F |
OUTLET
NPT-F |
Dimension
|
Cv |
|
|
HSPBV/3K/FF-2N |
1/8" |
1/8" |
58 |
25 |
32 |
4.5 |
38 |
95 |
1.12 |
| HSPBV/3K/FF-4N |
1/4" |
1/4" |
58 |
25 |
32 |
6.4 |
38 |
95 |
2.10 |
| HSPBV/3K/FF-6N |
3/8" |
3/8" |
58 |
25 |
32 |
9 |
38 |
95 |
8.35 |
| HSPBV/3K/FF-8N |
1/2" |
1/2" |
75 |
32 |
38 |
11.5 |
52 |
135 |
10.15 |
| HSPBV/3K/FF-12N |
3/4" |
3/4" |
80 |
38 |
45 |
19 |
54 |
135 |
16.80 |
| HSPBV/3K/FF-16N |
1" |
1" |
87 |
50 |
55 |
25 |
60 |
150 |
19.25 |
OPTIONAL:
- Male to Female connection
- For BSPP connection use G instead of N. eg. ABV/3K/FF-2G.
PRESSURE TEST:
- Every Ball valve is factory tested.
Note : Dimensions are reference only and are subject to change.
