| No |
SPECIFICATION
|
| 1 |
ACCURACY |
± 1.0% of F.S. |
| 2 |
AMBIENT TEMPERATURE |
-25°C to 65°C |
| 3 |
Operating Temperature |
25°C/+ 65°C |
| 4 |
Protection |
IP 65 |
| 5 |
Process Conn.& Bulb |
Stainless Steel 316 |
| 6 |
Bourdon |
Stainiess Steel 316 |
| 7 |
Welding |
TIG Argon arc. |
| 8 |
Case & Ring |
Stainless Steel 304 |
| 9 |
Movement |
Stainless Steel 304 |
| 10 |
Dial |
Aluminum, Black Markings with White background |
| 11 |
Pointer |
Aluminum, Black Coloured,Fix |
| 12 |
Window |
Plexi Glass 4.00mm thick |
| 13 |
Gasket |
EPDM / Nitrile |
| 14 |
Case Compensation |
Bimetallic Compensator |
| 15 |
BEZAL |
Crimped |
| 16 |
CASE FILLING LIQUID |
Silicon Oil / Glycerine |
| 17 |
DIAL SIZE |
100mm |
| 18 |
RANGE |
50/600°C, 0/650°C |
| 19 |
UNITS |
Degree Centigrade (°C),Degree Ferenite (°F) |
| 20 |
CONNECTION |
1/2", 3/4”,-BSP/NPT-Male |
| 21 |
CONNECTION TYPE |
Adjustable |
| 22 |

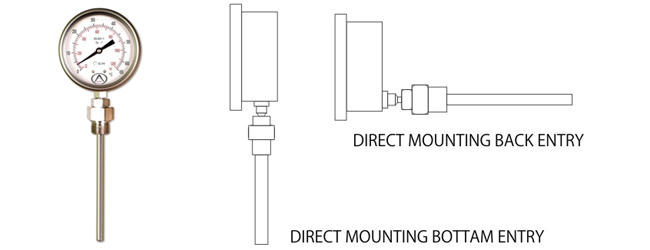

ENTRY |
Bottom & Back |
| 23 |
MOUNTING |
Direct |
| 24 |
BULB & STEM DIA. |
10mm, 12mm |
| 25 |
IMMERSION LENGTH |
As required, Standard 300mm |
| 26 |
OPTIONS |
Glycerine Filling in case,Shatter Proof Glass,Anti-Vibration Spring,Capillary |
| 27 |
ACCESSORY |
Thermowell |
