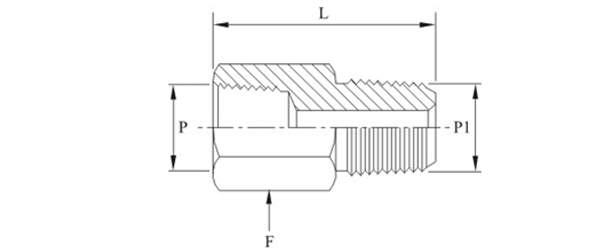

REDUCING ADAPTOR-10K M X F
High Pressure Pipe Fittings
| REDUCING ADAPTOR-10K M X F | |||||
| Part No | P NPTF | P1 NPTM | F HEX |
L | |
| HSRA-10KMXF-101 | 1/8" | 1/4" | 3/4" | 1.29" | |
| HSRA-10KMXF-102 | 1/8" | 3/8" | 3/4" | 1.29" | |
| HSRA-10KMXF-103 | 1/8" | 1/2" | 7/8" | 1.42" | |
| HSRA-10KMXF-104 | 1/4" | 1/8" | 7/8" | 1.33" | |
| HSRA-10KMXF-105 | 1/4" | 3/8" | 7/8" | 1.51" | |
| HSRA-10KMXF-105 | 1/4" | 1/2" | 7/8" | 1.70" | |
| HSRA-10KMXF-105 | 1/4" | 3/4" | 1-1/8" | 1.70" | |
| HSRA-10KMXF-106 | 1/4" | 1" | 1-3/8" | 1.89" | |
| HSRA-10KMXF-106 | 3/8" | 1/8" | 1-1/8" | 1.39" | |
| HSRA-10KMXF-106 | 3/8" | 1/4" | 1-1/8" | 1.57" | |
| HSRA-10KMXF-106 | 3/8" | 1/2" | 1-1/8" | 1.76" | |
| HSRA-10KMXF-106 | 3/8" | 3/4" | 1-1/8" | 1.76" | |
| HSRA-10KMXF-106 | 3/8" | 1" | 1-3/8" | 1.95" | |
| HSRA-10KMXF-106 | 1/2" | 1/8" | 1-3/8" | 1.70" | |
| HSRA-10KMXF-106 | 1/2" | 1/4" | 1-3/8" | 1.88" | |
| HSRA-10KMXF-106 | 1/2" | 3/8" | 1-3/8" | 1.88" | |
| HSRA-10KMXF-106 | 1/2" | 3/4" | 1-3/8" | 2.07" | |
| HSRA-10KMXF-106 | 1/2" | 1" | 1-3/8" | 2.26" | |
| HSRA-10KMXF-106 | 3/4" | 1/4" | 1-3/4" | 2.06" | |
| HSRA-10KMXF-106 | 3/4" | 3/8" | 1-3/4" | 2.06" | |
| HSRA-10KMXF-106 | 3/4" | 1/2" | 1-3/4" | 2.25" | |
| HSRA-10KMXF-106 | 3/4" | 1" | 1-3/4" | 2.44" | |
| HSRA-10KMXF-106 | 1" | 1/4" | 2-1/4" | 2.31" | |
| HSRA-10KMXF-106 | 1" | 3/8" | 2-1/4" | 2.31" | |
| HSRA-10KMXF-106 | 1" | 1/2" | 2-1/4" | 2.50" | |
| HSRA-10KMXF-106 | 1" | 3/4" | 2-1/4" | 2.50" | |
